High-Density Double Deep Pallet Rack Systems with Customizable Design

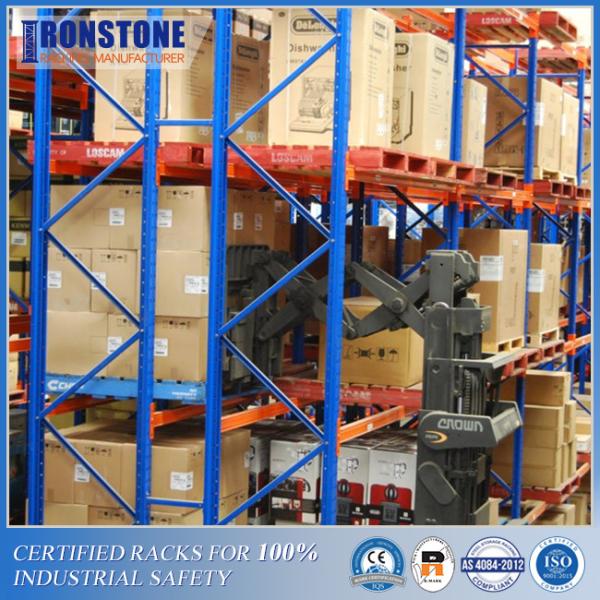

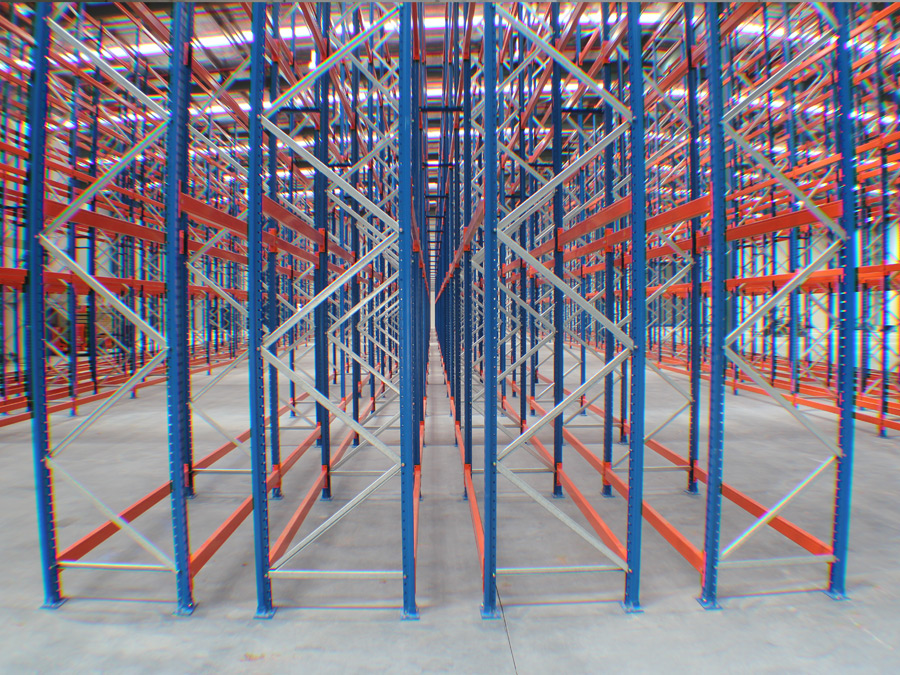

Double deep pallet rack system is designed based on selective pallet rack system that one row of back-to-back pallet racks is enlarged into two rows of back-to-back pallet racks. And a specialized forklift is equipped to reach double-deep pallets in medium aisles.
Double deep pallet rack is a space-effective choice for the warehouse since it reduces the number of aisles and increases storage density. Besides, it follows the principle of Last-in-First-out(LIFO), thus, 50% of cargoes are not directly accessible.
In a word, double deep pallet rack system is an efficient and cost-effective storage solution to help users to make good use of their available space in warehouse.
Features of Double Deep Pallet Rack:
Double deep pallet rack system is popular for cold storage, dry storage, and multiple same pallets. The following is the main features of double deep pallet racks which you should take into account when considering whether to apply double deep pallet rack system.
| Advantages of double deep pallet rack | Medium to low storage system |
| Floor level is not critical (front loaded) |
| Disadvantages of double deep pallet rack | Loss of storage locations as only same SKU can be stored in front storage positions |
| Recommended storage loss allowance 15-20% |
| LIFO inventory management |
| Limited storage height (10m) |
| Special trucks required |
| Poor visibility of rear upper storage levels |
| Reduced through-put rates when compared with Reach Trucks |
Specification of Double Deep Pallet Rack Truck:
| Aisle Width | Storage Area | Operating Aisle Area | Through-put Rate | Lift Height |
| 3.0 to 3.5m (medium width) | 55% | 45% | 12-18pph | up to 9.5m |
When to use double deep pallet rack system:
1) Store medium volumes of cargoes(no more than 3000 pallets);
2) SKUs in lots of two;
3) The cost of land is not too expensive;

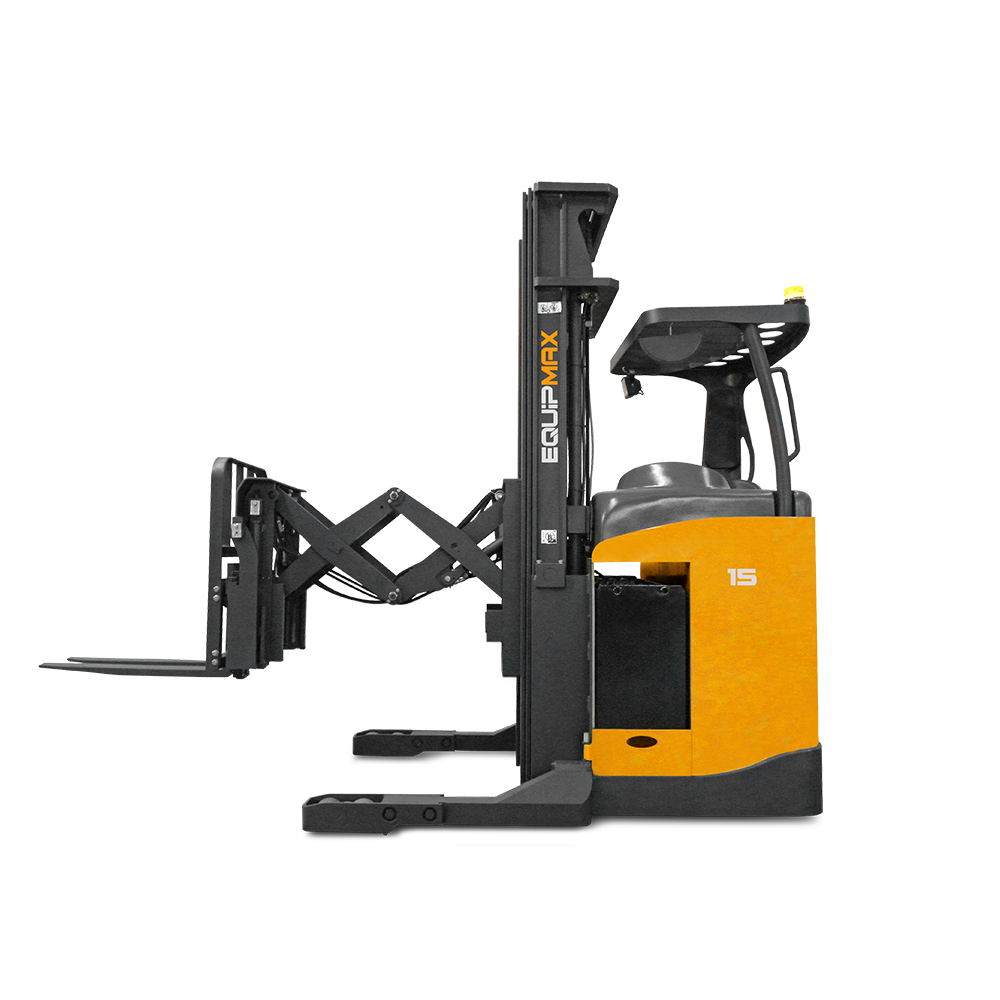

Deep reach truck is specially used in double deep pallet rack system. Its fork is designed to be able to up to reach two pallets deep so as to store and retrieve pallets in the inner rows. However, for the stability of the truck, the bottom two feet have to drive into the first level beam. Therefore, double deep pallet rack is required to design a first level beam next to the floor.
FAQ
1. What is double deep pallet rack?
Double deep pallet rack is a medium storage solution between selective pallet rack and other high density pallet rack like push back pallet rack. Two rows of back-to-back pallet rack are aligned in medium aisles to provide efficient and comparatively high-density storage.
2. How does double deep pallet rack work?
Double deep pallet rack system follows the principle of LIFO (last in first out). Firstly stored pallet will be taken out last. The inner pallets can not be taken out until the front pallets are removed. Thus, selectivity is reduced to 50% in order to enhance storage density.
3. What are the main benefits of double deep pallet rack system?
Compared with standard selective pallet rack system, double deep pallet rack system is a more space-effcient choice. It reduces the number of aisles and increases storage density by enlarging one row of back-to-back pallet rack into two rows of back-to-back pallet racks. Besides, its cost is less than other high-density pallet rack systems.
